HEDP (Hydroxyethylidene Diphosphonic Acid)

TL;DR HEDP is 1-hydroxyethylidene-1,1-diphosphonic acid, also called etidronic acid (CAS 2809-21-4; C₂H₈O₇P₂). This page is the acid route, not HEDP-Na2 or HEDP-Na4.

Selection and quotation

Selection inputs

  • Water analysis and scale/deposit identity
  • Acid or salt identity and required active basis
  • Existing oxidant and inhibitor program
  • Proposed formulation and representative trial

Documents and supply

Send the required specification, quantity, packaging and destination. Request the current TDS and SDS for the offered grade, and confirm which batch documents are available.

Technical documents · Company certificate scopes

Request a quote

Customer application: Coal-fired power plant in Indonesia. Discuss your application.

Product Description

Compare the application

CAS: 2809-21-4

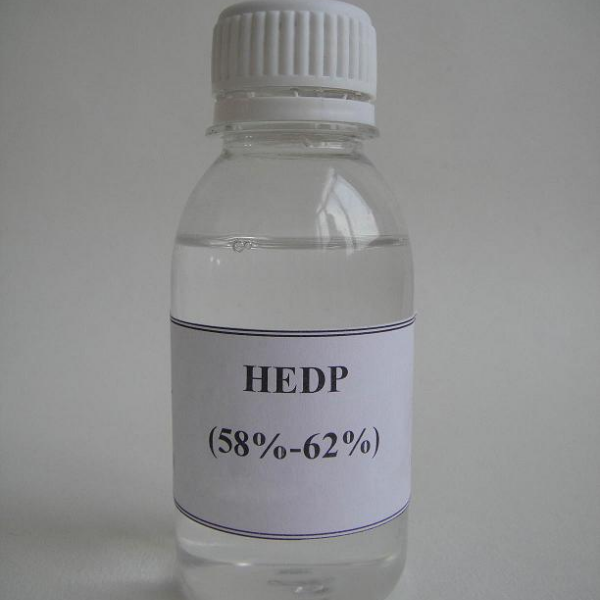

HEDP is 1-hydroxyethylidene-1,1-diphosphonic acid, also called etidronic acid (CAS 2809-21-4; C₂H₈O₇P₂). This page is the acid route, not HEDP-Na2 or HEDP-Na4. The catalog distinguishes a 58.0–62.0% acid liquid from a solid listed at ≥90.0%; compare concentration and physical form on the same acid-equivalent basis.

Catalog reference specifications

These are published catalog references, not a current batch COA. Match the offered grade and measurement basis before comparing offers.

itemsindex
AppearanceClear, Colorless to pale yellow aqueous solutionWhite crystal powder
Active content (HEDP)%58.0-62.090.0min
Phosphorous acid (as PO33-)%1.0 max0.8 max
Phosphoric acid (asPO43- )%0.6 max0.5 max
Chloride (as Cl-) ppm100.0 max100.0max
pH (1% solution)2.0 max2.0 max
Density (20℃)g/cm31.43-1.47-
Fe,mg/L10.0 max5.0 max
Colour APHA (Hazen)30.0 max-
Acetic acid %0.5 max
Ca sequestration (mg CaCO3/g)500.0 min

Compare the application · HEDP-Na2 · HEDP-Na4 · Prepare a quotation

Investigate cloudy HEDP preparation

If dilution changes the appearance, use controlled HEDP dilution-water and make-up tests to separate source water, mixing, holding and product effects. Share the preparation recipe, water analysis and observations when requesting a sample or quotation.

When the decision concerns the cooling-water inhibitor route rather than preparation appearance, compare the application conditions in the HEDP versus PBTC cooling-water selection guide.

Frequently asked questions

What does the catalog specify?

HEDP is 1-hydroxyethylidene-1,1-diphosphonic acid, also called etidronic acid (CAS 2809-21-4; C₂H₈O₇P₂). This page is the acid route, not HEDP-Na2 or HEDP-Na4. The catalog distinguishes a 58.0–62.0% acid liquid from a solid listed at ≥90.0%; compare concentration and physical form on the same acid-equivalent basis.

What should the trial compare?

Use the water analysis and deposit identity to define a scale-control formulation. Compare hardness, alkalinity, relevant ions, pH, temperature, metallurgy and the other treatment ingredients. Measure deposit control and corrosion separately. A sequestration value in a specification table is not a field dose, a universal operating limit or proof of whole-system protection.

What should I send for a quotation?

Send the product or model, required specification, quantity, packaging and destination. Include the application and current product, if known. Confirm the available TDS, SDS, batch documents, storage conditions and commercial delivery terms for the actual offer.

Consult Us Now for Water Treatment Chemical Solutions

We’re Always Here To support

We’re Always Here To support

Request a quote

HEDP Applications

HEDP performs well at high temperature and high pH, chelating metal ions to prevent scale while resisting chlorine oxidation better than most phosphonates.

  • Circulating cooling water
  • Low- and medium-pressure boilers
  • Oilfield systems
  • Metal cleaning and non-cyanide electroplating
  • Peroxide and bleach stabilizer

Dosage & Feed Guidance

ApplicationTypical dosage
Cooling water (scale)Select the exact grade for the intended process, water and equipment. Ask for its current product documents and compare it under representative conditions.
Cleaning / pre-filmingSelect the exact grade for the intended process, water and equipment. Ask for its current product documents and compare it under representative conditions.

HEDP tolerates chlorine better than most phosphonates, making it suitable for chlorinated cooling systems. Higher concentrations are used for system cleaning and pre-filming. VCYCLETECH provides a tailored dosing program on request — email sales@vcycletech.com.

Find the right product for your application

Compare HEDP (Hydroxyethylidene Diphosphonic Acid) with the treatment objective and operating conditions of your water or process system. Include the industry, water characteristics, current treatment, target, required quantity, packaging and destination in your enquiry so the relevant available grades can be identified and quoted.

Discuss your application and request a quote →

Related guide: Cooling Tower Water Treatment: Chemicals & Dosage Guide
