Microparticle Retention & Drainage Systems
A microparticle retention system pairs a cationic polymer or starch with a negatively charged microparticle added at a controlled point after shear. Colloidal silica often targets drainage and fine-particle capture; hydrated bentonite offers robust retention across filler and anionic-load changes; organic micropolymers add a polymeric surface and dosing flexibility. The right choice is a furnish-and-machine trial, not a universal performance promise.
What is a microparticle retention system?
A microparticle system is usually a two-component retention and drainage program. A cationic polymer or cationic starch first adsorbs to negatively charged fibers, fines and fillers. A later anionic microparticle then interacts with the preconditioned floc structure, creating compact, water-releasing microflocs. The sequence can improve first-pass retention and drainage while limiting the large flocs that damage formation.
“Microparticle” is a functional category, not one material. Common choices are colloidal silica, hydrated bentonite/sodium montmorillonite and crosslinked or structured organic micropolymers. Product structure, charge, solids, particle-size distribution, surface area and interaction with DCS matter more than the label.
Silica vs bentonite vs organic micropolymer
| System | Particle and surface context | Typical selection signal | Boundary to test |
|---|---|---|---|
| Colloidal silica / structured silica | Conventional retention silica is often reported around 3–5 nm primary particles and 500–600 m²/g; structured microgels can be around 1200 m²/g. Exact product values vary. | Strong drainage and fine-particle response when charge balance and addition point are controlled. | Salt, pH, DCS, structure, dilution stability and shear can change response; published ranges are not a product specification. |
| Hydrated bentonite / smectite | Two-dimensional crystals are about 0.9 nm thick with variable lateral dimensions; dispersed smectite can approach about 800 m²/g, while aggregated material is much lower. | Robust retention and tolerance of high filler/fine-filler loads in suitable furnish. | Hydration, exchangeable cations, salt, dispersion time, grade and filler chemistry must be checked. |
| Organic micropolymer | Crosslinked or structured polyacrylamide particles can be larger than inorganic particles but present a high effective surface through polymer chains, loops and strands. | Dosing flexibility, retention/drainage plus possible colloid and stickies control in a demanding system. | Emulsion inversion, active solids, charge, shear, mineral-oil carrier and compatibility require supplier data and a machine trial. |
The dimensions above are evidence-bound ranges from technical literature, not a promise for every commercial grade. The paper-chemicals category is a procurement starting point; request the actual particle-size, surface-area, charge and solids data for the grade being considered.

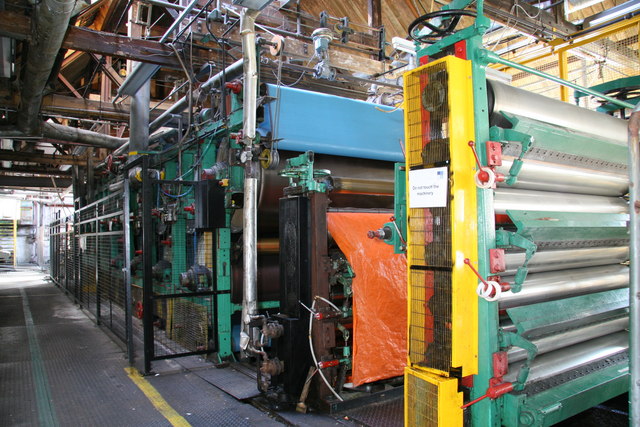

Why addition order and shear determine the result
A common sequence is cationic polymer or starch before a pressure screen or other high-shear point, followed by silica or bentonite after the last major shear point and near the headbox. The first component creates patches or a macrofloc; shear breaks and redistributes the structure; the microparticle then rebuilds smaller, more permeable flocs. This is the mechanism behind the common phrase “shear, then reflocculate.”
Some mills use the reverse order and still obtain a workable result because rapid transport can move the cationic polymer onto fibrillated fibers under intense shear. That does not make the sequences interchangeable. Test both only when the machine has suitable injection points and measure formation, first-pass retention, drainage, white-water turbidity and chemical residuals.
What DCS and filler loading change
Excess anionic DCS can consume the cationic component before it reaches fiber and filler surfaces. PCC, GCC, clay, talc and fines also change the available surface area and charge balance. A program that looks strong in washed pulp may lose drainage or retention in a closed recycled loop. Treat DCS control as an upstream variable; the anionic-trash and charge-demand guide explains how to measure and fix that interference.
Microparticle selection workflow
- Set the objective. Decide whether the limiting constraint is first-pass retention, vacuum load, press dryness, formation, filler loss, deposits or machine speed.
- Characterize the furnish. Record fiber mix, recycled content, filler type and level, pH, conductivity, hardness, calcium, DCS/charge demand, temperature and microbiological or deposit signals.
- Map the machine. Mark fan pump, pressure screens, cleaners, dilution, headbox and the last high-shear point. Confirm dilution water and residence time at every feed location.
- Run controlled screens. Use the same feed basis and mixing energy for silica, bentonite and micropolymer. Compare dynamic drainage and retention, not only a static jar.
- Validate in production. Trend first-pass retention, white-water solids/turbidity, vacuum, drainage, sheet formation, ash/filler, breaks and deposits while changing one control variable.
Buyer checklist for a microparticle program
- Particle type, primary particle size or crystal thickness, structure, specific surface area and particle-size distribution.
- Charge type and measurement method, pH, solids, density, viscosity, dilution stability, hydration/make-down time and shelf life.
- Polymer partner grade, charge density, molecular-weight range, inversion/make-down requirements and compatibility with sizing, starch and strength chemistry.
- Furnish/filler data, DCS charge demand, conductivity, calcium, pH, shear points, injection windows and target retention/drainage metrics.
- Trial method: dynamic drainage or Britt Jar protocol, mixing energy, contact time, sample consistency, formation measurement and production acceptance criteria.
- Current TDS, SDS and batch COA with active solids, lot traceability and the exact test methods behind particle and surface-area values.
For general wet-end context, read the retention-aid guide and the additive-order compatibility guide. For deposits and stickies, use the deposit-control troubleshooting page before increasing retention chemistry. Share the furnish and machine map through the inquiry page for a trial discussion.
Frequently asked questions
What is a microparticle retention system in papermaking?
It is a paired retention and drainage program in which a cationic polymer or starch is combined with an anionic silica, bentonite or organic micropolymer. The first component conditions fibers, fines and fillers; controlled shear redistributes the floc; the microparticle then rebuilds smaller, more permeable structures.
Is colloidal silica better than bentonite for retention?
Neither is universally better. Colloidal silica often offers a strong drainage and fine-particle response when charge and shear are controlled, while hydrated bentonite can provide robust retention across filler and anionic-load changes. Compare the actual furnish, formation, first-pass retention and drainage at the intended feed points.
What particle size is used for colloidal silica in papermaking?
Technical literature commonly reports conventional primary particles around 3–5 nm and specific surface area around 500–600 m²/g; structured silica microgels may be around 1200 m²/g. Commercial grades vary, and the quoted ranges are not a universal specification or a guarantee of drainage performance.
How should a microparticle system be dosed around shear?
A common sequence places the cationic polymer or starch before a major shear point and the anionic microparticle after the last major shear point, often near the headbox. Some mills use another sequence. Validate injection point, contact time and dilution with dynamic drainage, retention and formation measurements.
Do microparticle systems work with recycled fiber and high DCS?
They can, but high DCS consumes cationic chemistry and changes charge balance before the microparticle is added. Measure charge demand, conductivity, calcium and filler load; control the DCS source; then screen the paired system in the same recycled furnish and shear history used on the machine.
About the author and evidence
VCYCLETECH Technical Team prepares application content from public technical literature, current supplier documentation and site-specific buyer requirements. It does not certify another facility, set a paper-machine dose from a laboratory value or guarantee a production result. Final chemistry selection requires current furnish data, machine testing and documented change control.
