Mixed-Source Injection Water: Test Scale Compatibility Before Blending
Before blending two injection-water sources, define the compatibility window across the ratios and conditions the system can actually reach. Analyze each source separately, close the ionic balance where possible, and preserve suspended solids, iron, dissolved gases, pH, alkalinity and sampling state. Model a full ratio sweep, then test selected low-, intermediate- and high-risk blends at relevant temperature, pressure, residence time and gas exposure. Locate the first commingling point—tank, line, wellhead or downhole—because precipitation may begin before a proposed inhibitor feed point. Use induction, precipitate/filter response and dynamic pressure evidence to decide whether to restrict the ratio, pretreat a source, move the mixing or feed point, or validate a treatment route. A 50/50 bottle and one scale index are not universal proof.
Build a separate, charge-aware baseline for every source
Do not start with a composite sample. Each source can change with well contribution, season, treatment, tank level or oxygen exposure. Sample each source at the location and state immediately before it would join the other stream. Record date, flow, temperature, pressure, sample point, preservation, filtration state and time to analysis. Note upstream acid, oxygen scavenger, biocide, corrosion inhibitor, scale inhibitor and solids-control additions because they can affect both chemistry and interpretation.
The minimum dissolved-ion set for common mineral-scale questions includes calcium, barium, strontium, magnesium where relevant, sulfate, bicarbonate or alkalinity, carbonate context, chloride and total dissolved solids or density. Include pH with measurement temperature, dissolved and total iron, suspended solids and turbidity. Dissolved carbon dioxide, hydrogen sulfide and oxygen may matter because gas loss or oxidation can shift pH, carbonate balance, iron form and redox state. Use safe, method-appropriate sampling; a depressurized bottle may not preserve downhole conditions.
| Evidence group | Measure or document | Decision supported | Failure if omitted |
|---|---|---|---|
| Major ions | Ca, Ba, Sr, Mg, sulfate, alkalinity/carbonate context, chloride, salinity | Ion balance and candidate mineral tendencies | A missing counter-ion hides the incompatible pair |
| Physical solids | TSS, turbidity, particle/filter response, total and dissolved iron | Separate new precipitation from incoming solids | Baseline solids are misreported as scale |
| State variables | pH, temperature, pressure, density, gases and redox context | Define conditions for calculation and testing | Surface bottle behavior is projected downhole |
| Operations | Source flow range, tank residence, intermittent changes, prior chemicals | Choose realistic ratios and exposure time | A nominal ratio misses transient high-risk blends |
| Sample quality | Point, time, preservation, filtration, headspace and method | Judge comparability and uncertainty | Apparent incompatibility is created after collection |
Check analytical consistency rather than forcing bad data to fit a model. A material charge imbalance, implausible alkalinity, contamination or undocumented filtration should trigger review or resampling. Preserve uncertainty in the decision card; precision in a model cannot repair an unrepresentative source sample.
Map the full blend window, not only a 50/50 bottle
The highest scaling tendency need not occur at equal volumes. A source rich in barium or strontium can meet a sulfate-rich source at a limiting stoichiometric ratio far from 50/50. Carbonate behavior can shift with pH, alkalinity, carbon dioxide loss and temperature. Iron may precipitate through oxidation or pH change and then act as deposited material or a surface for additional solids. For this reason, calculate and test the ratios the system can encounter—including startup, tank turnover, flow-control lag and upset—not just the design average.
Peer-reviewed work on formation-water and injection-water mixing demonstrates that blend ratio, temperature and pressure can materially change predicted and observed scale behavior.1 Those published conditions are case evidence, not limits for another field. A recent review likewise describes the dependence of oilfield scale management on brine chemistry and operating conditions.2
Begin with a 0–100% model sweep at useful increments and identify predicted maxima, threshold regions and mineral competition. Select laboratory ratios around those features plus operating extremes. Include both source-only controls. If suspended solids or iron are present, compare filtered and unfiltered pathways only when that distinction represents a real process choice; do not quietly filter the test water and claim the result for the unfiltered system.
A saturation index identifies thermodynamic tendency under stated inputs; it does not give deposition rate, induction time, surface adhesion or plugging. Conversely, a clear static bottle may reflect slow kinetics, sample alteration or a short hold time. Use disagreement between calculation and observation as a reason to inspect inputs and mechanisms.

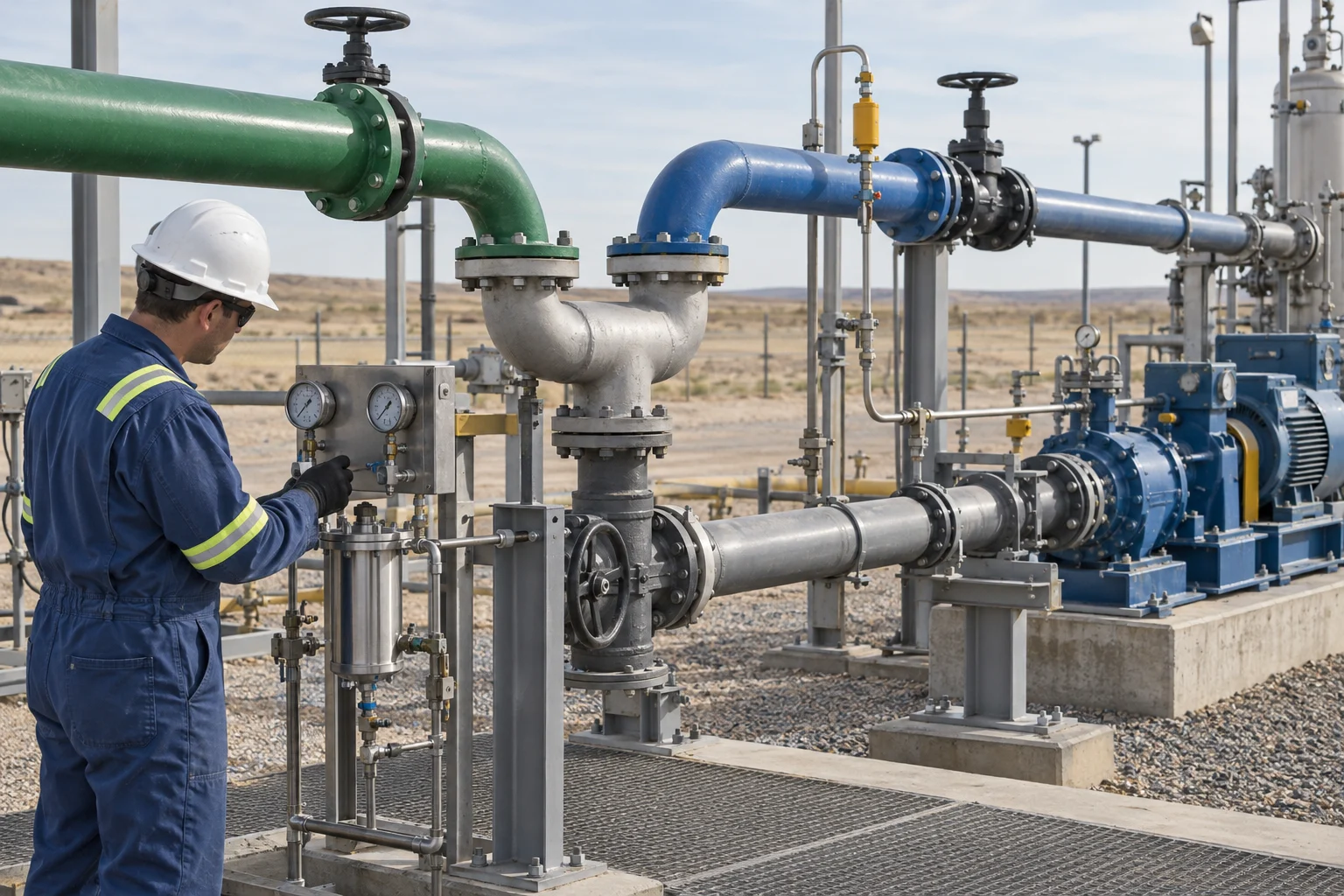

Locate the first commingling point before choosing a feed point
Draw the water path from source to formation. Two sources may first meet in a storage tank, at a pump suction, inside a transfer line, at a wellhead manifold or only downhole as injection water contacts formation brine. Record flow range, residence, temperature, pressure, shear and surfaces for each segment. Include recycle, dead legs and intermittent backflow if credible. The first place incompatible ions coexist can be upstream of the point operators call “the mixer.”
The Scientific Reports literature describes the familiar incompatibility mechanism of cation-rich formation water meeting sulfate-rich injection water, while emphasizing that the actual mineral response depends on the brines and conditions.3 The engineering consequence is spatial: a treatment injected after an atmospheric tank cannot prevent precipitation that began in that tank. A feed location also needs mixing energy, reliable flow, safe materials, sufficient contact and a verification sample point.
Separate “where scale can form” from “where an inhibitor can be delivered.” If formation-water contact occurs only downhole, a surface test still needs to represent downhole mixing, temperature and pressure as far as practicable. If the sources mix at the surface, residence before the injection point may control induction and filter loading. The route may require source segregation, a shorter residence, pH or gas management, sulfate or solids pretreatment, or a restricted ratio before a chemical program is considered.
Escalate from calculation to static and dynamic evidence
Use a tiered program. First, verify source analyses and model the ratio/condition envelope. Second, run sealed static compatibility tests with source controls and selected ratios. Record preparation order, time zero, temperature ramp, pressure boundary if applicable, mixing, observation intervals and sample losses. Measure more than appearance: final pH and ions where useful, filtered solids or filterability, precipitate identity when the decision warrants it, and an induction-time proxy appropriate to the method.
AMPP’s July 2026 standards update lists NACE TM0374-2026, Laboratory Screening Tests for Scale Inhibitors, as a stabilized standard.4 Use the current purchased standard and qualified laboratory method when it applies; its existence does not validate a product or dose. Static inhibitor screens compare candidates under defined conditions, but continuous-flow deposition, pressure drop, surfaces, shear and injection geometry may require dynamic testing.
| Method | Useful output | Boundary | Decision gate |
|---|---|---|---|
| Ion/speciation model | Mineral candidates, ratio hotspots, sensitivity to T/P/pH | Depends on analysis, database and assumptions; no rate or adhesion proof | Select conditions and ratios for testing |
| Static compatibility blend | Visible onset, chemistry change, solids/filter response over time | Bottle surfaces, mixing and depressurization may differ from field | Reject or narrow clearly incompatible windows |
| Static inhibitor screen | Relative control under a defined method | Does not fix poor feed placement or prove field dose | Shortlist candidates and compatibility checks |
| Dynamic loop or tube-blocking test | Flowing deposition or pressure response under controlled conditions | Still a model of geometry, metallurgy and residence | Confirm route and operating margin before field trial |
| Controlled field trial | Filter, pressure, residual, solids and equipment trends | Needs baseline, sampling and stop rules | Accept, adjust or reject the operating window |
Keep untreated controls and blanks appropriate to the method. Analyze precipitate rather than assigning every filter mass to barium sulfate. Track iron and incoming suspended matter. When comparing an inhibitor, document product identity, active basis if verified, dilution water, addition order and contact location. Do not transfer a laboratory concentration directly into a field instruction.
Choose the physical operating window before the chemical route
Make the decision in this order. First ask whether the planned ratio can avoid the unacceptable region while meeting water-availability and injection requirements. Next ask whether pretreating sulfate, hardness, iron or solids is technically and economically justified. Then consider whether moving the mixing point or reducing residence prevents upstream precipitation. Only after those choices should an inhibitor route and feed point be screened.
For a field trial, establish source flows and blend ratio, temperature and pressure, upstream and downstream sampling, filter mass or filterability, differential-pressure and injection-pressure trends, relevant ions, suspended solids and iron, plus any scale coupon or inspection method appropriate to the system. Define alarm and stop conditions. A falling inhibitor residual can have several causes and is not, by itself, proof of deposition or protection.
The Oilfield Water Treatment application page is the Money Page for mapping sources, commingling and evidence. WT-607, WT-607B, and the Phosphonate Antiscalants category are identity paths only unless current grade documents and representative testing support the case. The continuous-injection guide begins after risk and route are defined. Review the video and evidence library, then share separate source analyses, ratio range and mixing map →
Frequently asked questions
Is a 50/50 compatibility test enough for two injection-water sources?
No. Maximum precipitation tendency can occur away from equal volumes because limiting ions, pH and operating conditions vary. Screen the complete expected ratio envelope, then test ratios around predicted maxima, thresholds and field transients.
Which ions are most important for mixed-water scale risk?
Common priorities include calcium, barium, strontium, sulfate and carbonate/alkalinity chemistry, with pH, temperature, pressure, salinity, iron and gases defining the state. The necessary panel depends on both sources and the minerals under consideration.
Can a saturation index replace a laboratory compatibility test?
No. A model helps identify candidate minerals and sensitive ratios, but does not establish kinetics, induction time, adhesion, filter response or field plugging. Use it to design representative static and, when needed, dynamic testing.
Where should scale inhibitor be injected when two waters are blended?
The candidate feed point must be evaluated relative to the first commingling and precipitation zone, mixing energy, residence time, pump and materials limits, sample access and safe operation. Feeding downstream of existing precipitation cannot protect the upstream segment.
What evidence should accompany a mixed-water scale-control inquiry?
Provide separate source analyses and sampling details, expected and transient ratios, flow, pH, temperature, pressure, gases, suspended solids and iron, a line-and-tank mixing map, residence times, existing chemicals, filter or pressure history, and the acceptance and stop criteria.
Sources
- Study of formation- and injection-water mixing effects on scale — ratio, temperature and pressure dependence under case-specific conditions.
- 2026 review of oilfield scale-management approaches — chemistry, condition and method context.
- Scientific Reports study of incompatible formation and injection waters — sulfate-scale mechanism under studied brines and conditions.
- AMPP, July 2026 standards update — status of NACE TM0374-2026.
Sources, current search results and question-form queries were reviewed on 9 October 2026 for the 8 October campaign slot. They support the evidence ladder, not a universal blend ratio, product, dose, temperature/pressure limit, compatibility result or performance guarantee.
