Produced Water Scale Investigation: Barium, Strontium and Iron
TL;DR When produced-water piping or equipment starts to scale, identify the deposit and the water change that preceded it. Collect representative water from the mixing points and a safely obtained deposit sample. Compare barium and strontium sulfate risk with iron corrosion products and other plausible solids; a dark or pale color is not enough to choose a treatment. Map the location of the deposit, temperature, pressure and mixing history, then screen scale-inhibitor candidates against the brine and the actual injection route. This narrows the chemical choice and avoids testing a product against the wrong mechanism.
Identify the deposit before choosing chemistry
This is a post-upset diagnostic page for production and flow-assurance teams facing deposits, restriction, changed pressure drop or an uncertain scaling mechanism. It is not a generic product selection page: the oilfield water-treatment application is the solution hub, while the RFQ and squeeze-trial checklist converts a defined hypothesis into a controlled purchase or trial package. The key deliverable here is a defensible question, not a chemistry promise.
Match the deposit to the brine and process history
| Sample or operating record | Question it can help answer | When this applies |
|---|---|---|
| Deposit sample with location and custody | Is the solid consistent with a sulfate, carbonate, iron-rich or mixed deposit hypothesis? | Use a suitable qualified mineralogical/elemental method; visual colour is not identification. |
| Paired water analyses | Are barium, strontium, calcium, sulfate, alkalinity, iron and dissolved solids changing across a mixing or pressure/temperature boundary? | Analytical method, filtration and sample preservation affect comparability. |
| Operating timeline | Did a water source, injection ratio, temperature, pressure, separator, shutdown or cleaning event change before deposits appeared? | Correlation identifies a hypothesis, not a mechanism by itself. |

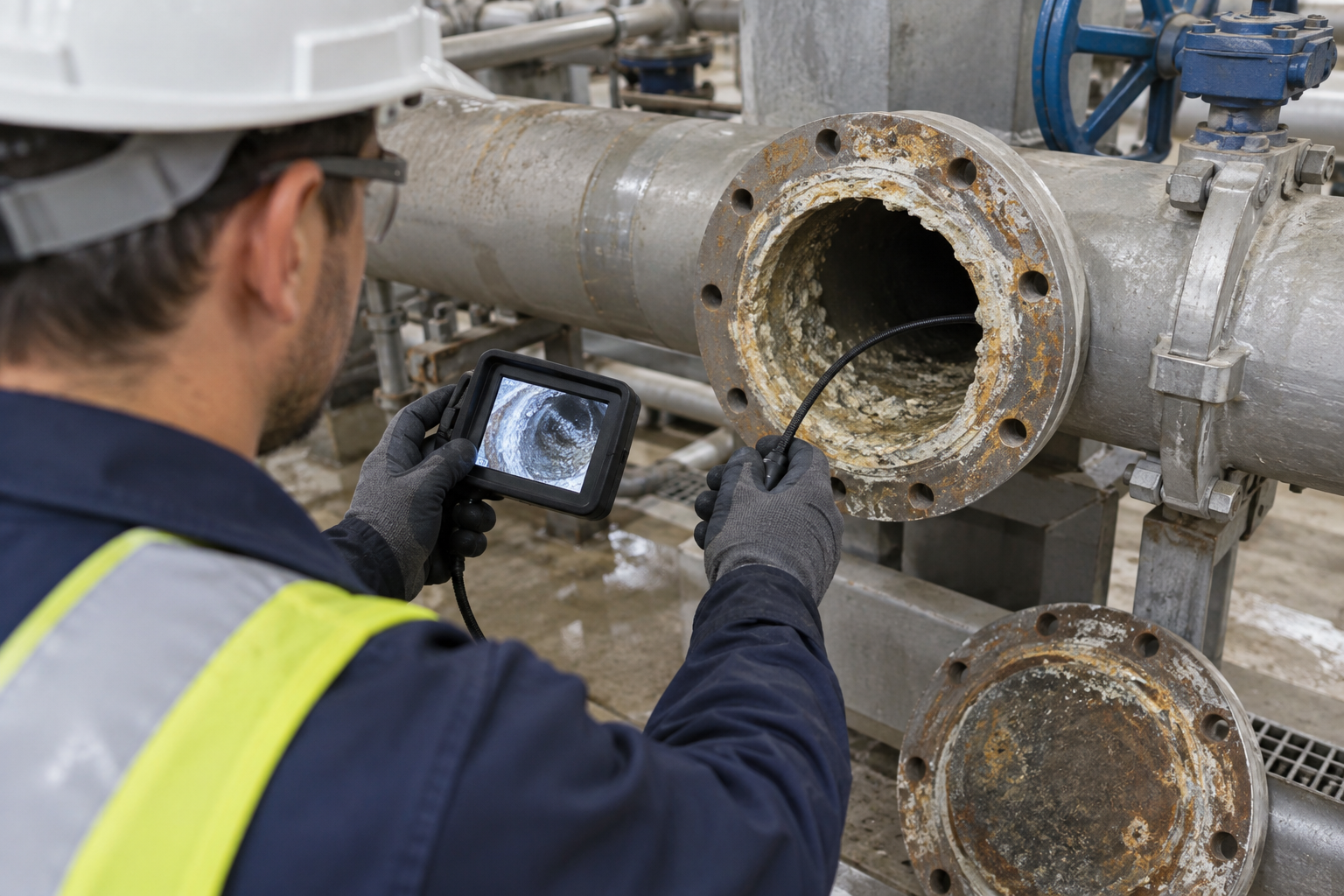

| Inspection and solids record | Where is material accumulating and is under-deposit corrosion or restriction a concern? | Safe inspection and qualified integrity review are required; a photo is not a corrosion-rate result. |
Why barium, strontium and iron need different questions
Mixing incompatible brines and changing temperature or pressure can change mineral supersaturation. The scale-squeeze literature identifies barium sulfate as a particularly persistent oilfield scale problem and treats inhibitor selection, placement and retention as system-specific. Barium and strontium measurements therefore belong with sulfate, water-source identity and the mixing history. Iron requires a separate branch: it may be corrosion product, formation or process solids, or part of a mixed deposit. None of those labels can be resolved from a generic image, an ion result alone or a product brochure.
| Signal | What to check next | Better next step |
|---|---|---|
| Barium/strontium present or increasing | Paired sulfate and full brine analysis; source-water/mixing map; deposit identification where feasible. | Assuming every Ba/Sr result proves a current sulfate-scale deposit. |
| Iron-rich solids or red/brown deposits | Location map, solids/deposit analysis, material and corrosion history, upstream solids/filtration review. | Calling it scale inhibitor failure or a corrosion rate from appearance. |
| Restriction after changed operations | Time sequence, pressure/flow context, water-source changes and selected safe inspection points. | Increasing chemical feed before the mechanism and injection point are known. |
From scale sample to inhibitor trial
- Protect safety and representativeness. Follow site sampling, pressure, hot-work and chemical procedures. Record point, time, preservation, filtration state and chain of custody.
- Map all relevant waters. Produced water, injection/refill water, seawater or other source water should not be blended into one unexplained sample label.
- Preserve the deposit story. Note exact location, upstream/downstream condition, recent cleaning and whether the material was loose, adherent or mixed with corrosion products. Use appropriate qualified analysis rather than visual diagnosis.
- Model the decision boundary. A trial question may be “does this candidate remain compatible with this brine and control the specified mechanism under agreed conditions?” It is not “what ppm works everywhere?”
- Agree the re-test gate before purchase. Define water/data requirements, equipment/material boundary, observation window, sample plan and who decides whether the evidence is sufficient.
What to share for an inhibitor shortlist
| Include | How it helps the selection |
|---|---|
| Water-source map and dated analyses | Connects ion data to the actual brines and potential mixing boundary. |
| Deposit sample record and applicable analysis | Separates a mineral hypothesis from a colour or location assumption. |
| Pressure, temperature, flow and event history | Provides the operating envelope; these inputs are not universal setpoints. |
| Materials, equipment and injection-point map | Sets compatibility, access and integrity-review boundaries. |
| Current product TDS/SDS/COA and change history | Supports identity, safe handling and traceability; it is not performance proof. |
Start with the oilfield application and compare WT-607B grade information with your brine, scale sample and injection route. Use the inhibitor inquiry guide to share the water analyses and operating conditions needed for screening.
Frequently asked questions
What causes barium sulfate scale in produced water?
Barium sulfate risk can increase when waters with compatible barium and sulfate sources mix or when operating conditions change. The mechanism must be evaluated with paired brine chemistry, mixing history, temperature/pressure context and, where possible, deposit evidence; a barium result alone is not a diagnosis.
Does strontium always mean sulfate scale is forming?
No. Strontium is a useful scaling-risk input but does not by itself identify an active deposit. Compare it with sulfate, source-water identity, mineral/deposit evidence and the actual operating history.
Can iron in a produced-water deposit be treated as scale?
Not automatically. Iron can reflect corrosion products, formation solids, transported material or a mixed deposit. A safe inspection and suitable analysis are needed before selecting a correction path.
What information is needed before an oilfield scale-inhibitor trial?
Provide dated source-water analyses, a water/mixing map, deposit evidence if available, operating history, temperature/pressure/flow boundary, materials/equipment map, current product documents and an agreed sampling and acceptance plan.
Can this investigation set a universal scale-inhibitor dose?
No. Dose and trial design depend on actual brine chemistry, supersaturation, injection method, temperature, pressure, residence time, materials and acceptance criteria. They must be established through site-specific qualified review.
About this guide
Prepared by the VCYCLETECH Technical Team. Compare product options with your own water, equipment and operating goals; use current grade documents and a representative trial to confirm the final choice.
Sources
- Petroleum Science review: state of the art in scale-inhibitor squeeze treatment
- Heriot-Watt research: scale-inhibitor selection for continuous and squeeze applications
- MDPI review: produced sand/fines and water/solids handling context
- Industry RFQ checklist: current market structure reference, not a VCYCLETECH capability claim
